RV-10 - Workshop Space

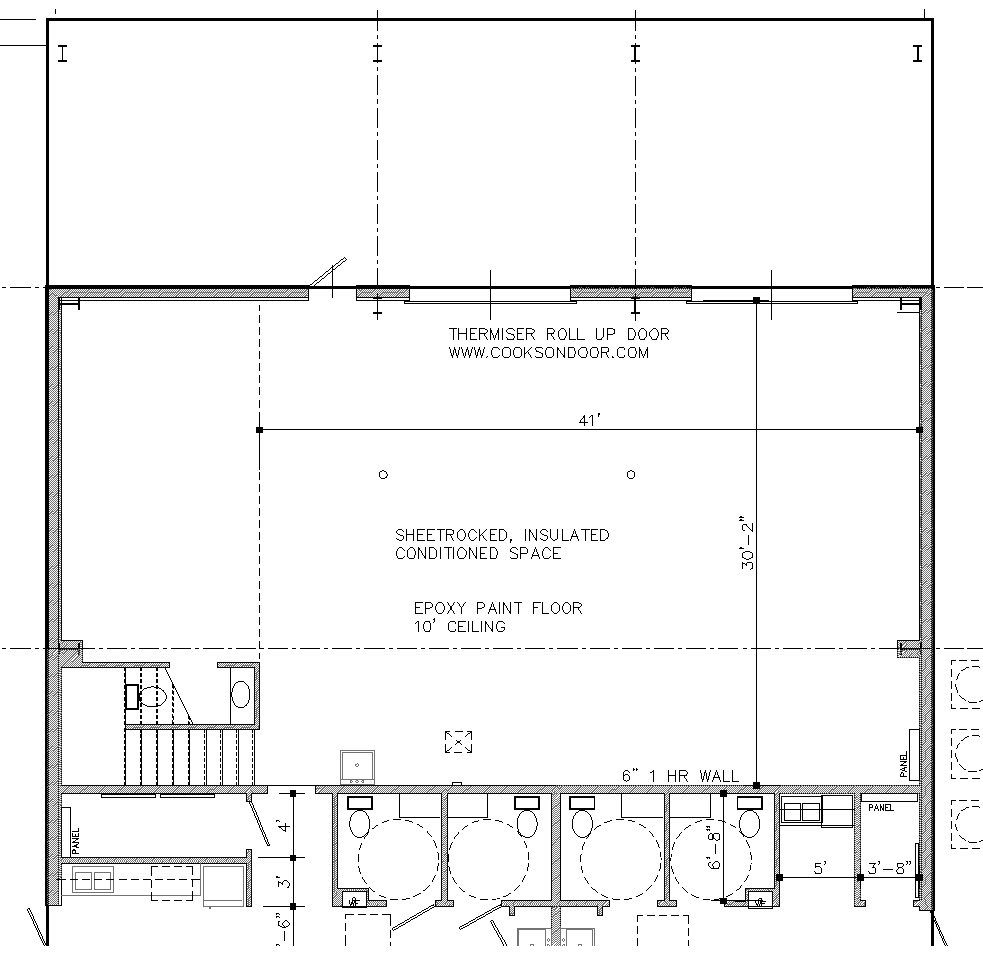

Construction of a new office and workshop

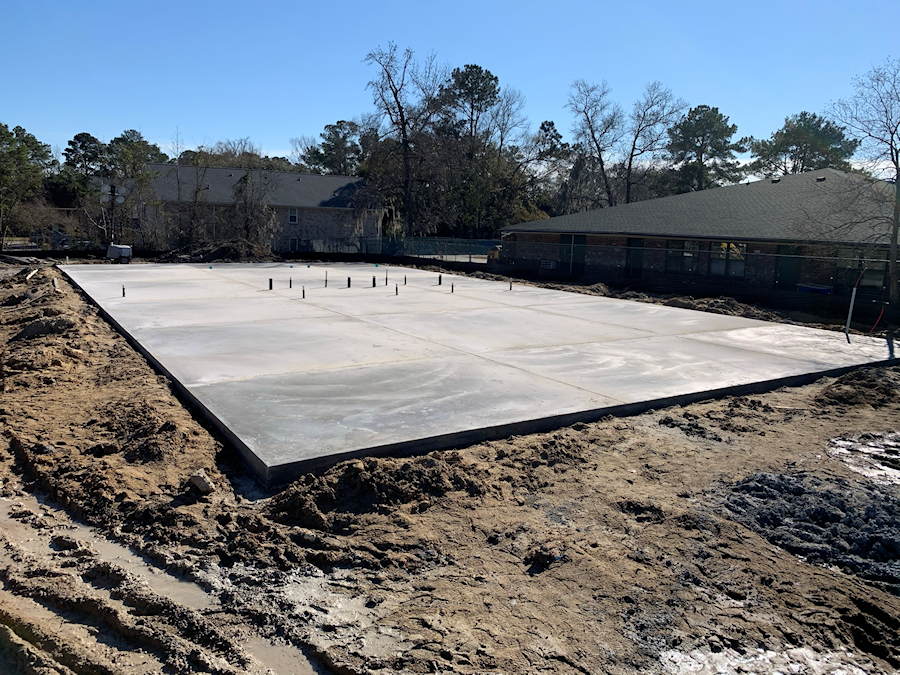

January 10, 2021 - Slab poured, waiting on a building.
December 10, 2021 - Finally have a building shell.

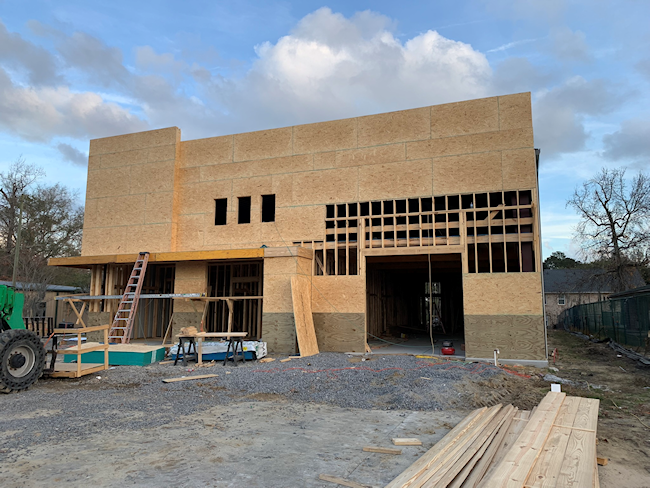

December 17, 2021 - Front facade framing.
Feb 2, 2022 - Front facade skin going on
Feb 20, 2022 - Front facade skin going on

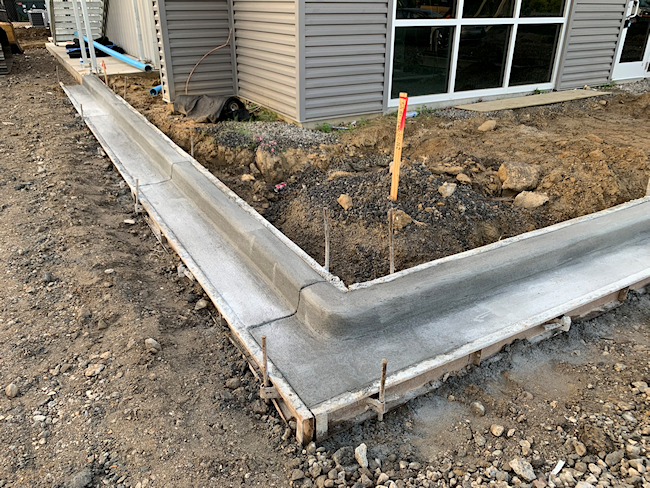

May 12, 2022 -Parking lot, site work.
May 12, 2022 Cabinets in the Airplane Shop

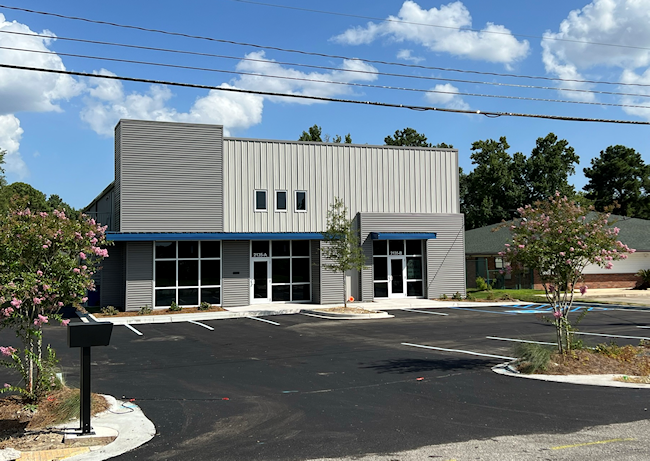

July 30, 2022 Thank you Lord. We are finally in the building!

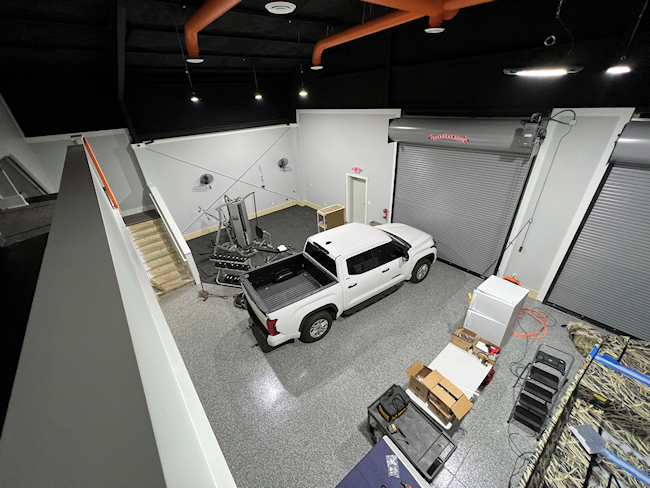

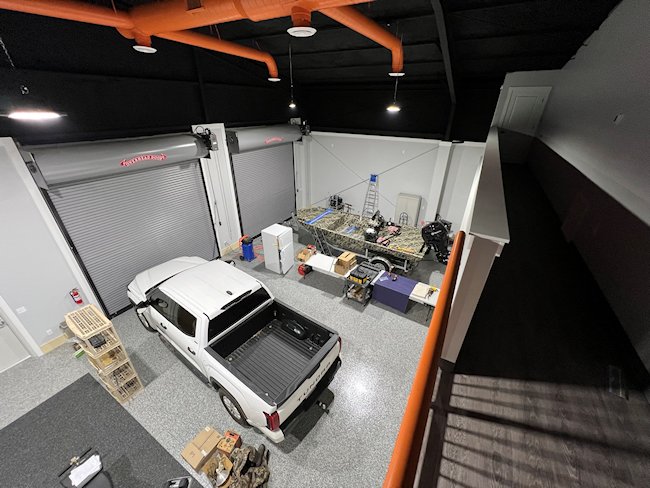

July 30, 2022
July 30, 2022
July 30, 2022


7/26/20- Updated project schedule
6/26/20- Posted an About Me page
4/3/20- Posted Hor. Stabilizer Page
2/27/20- Posted Rudder Page
1/24/20- Posted V. Stabilizer Page
7/3/19- Preliminary Schedule
6/25/19 - Set up website




Status / Completed
08/01/21 - QB Wings Ordered
05/15/21 - New QB Fuse Delivered
04/25/21 - QB Fuse Returned
04/09/21 - Instrument Panel Delivered
12/2/20 - QB Fuse Delivered
11/29/20 - Hor. Stab Complete
05/2/20 - Rudder Completed
03/20/20 - Ordered QB Fuse
02/26/20 - V. Stab Completed
02/07/20 - Reserved N584TA
01/24/20 - Start Vertical Stabilizer
01/16/20 - Building Work Tables
01/02/20 - Ordered Empennage Kit
12/27/19 - Ordered Tools Cleaveland Tools Kit
8/2/19 - Preliminary Schedule Complete
7/5/19 - Working through preliminay schedule
7/1/19 - Planning, researching, etc.
